Multi-factor Authentication for Citrix XenDesktop / NetScaler against Azure AD

René Bigler

22 Oct 2017 — 7 min read

citrix_saml_mfa

In my last post about secure access to XenDesktop virtual workspaces I tried to give an overview of the different ways to implement multi-factor authentication with Citrix NetScaler and XenDesktop. I came to the conclusion that integrating the remote access with Azure AD and using the Microsoft MFA feature is a very end user friendly way to accomplish this goal, especially when you already have Azure AD in your setup. In this post I will outline a walkthrough to the setup and configuration steps needed.

Settings and Configuration in Microsoft Azure AD

In a first step we need to create a new enterprise application in Azure Active Directory.

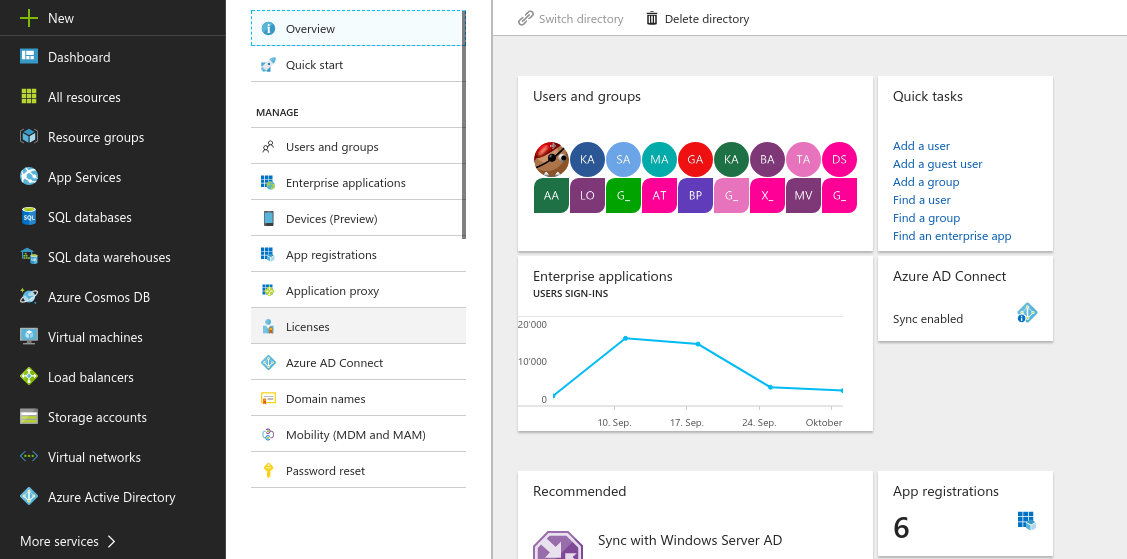

AzurePortal_AzureAD — Select the Azure Active Directory management

Select Enterprise applications and create a new application. Choose to create a non-gallery application and give it a name

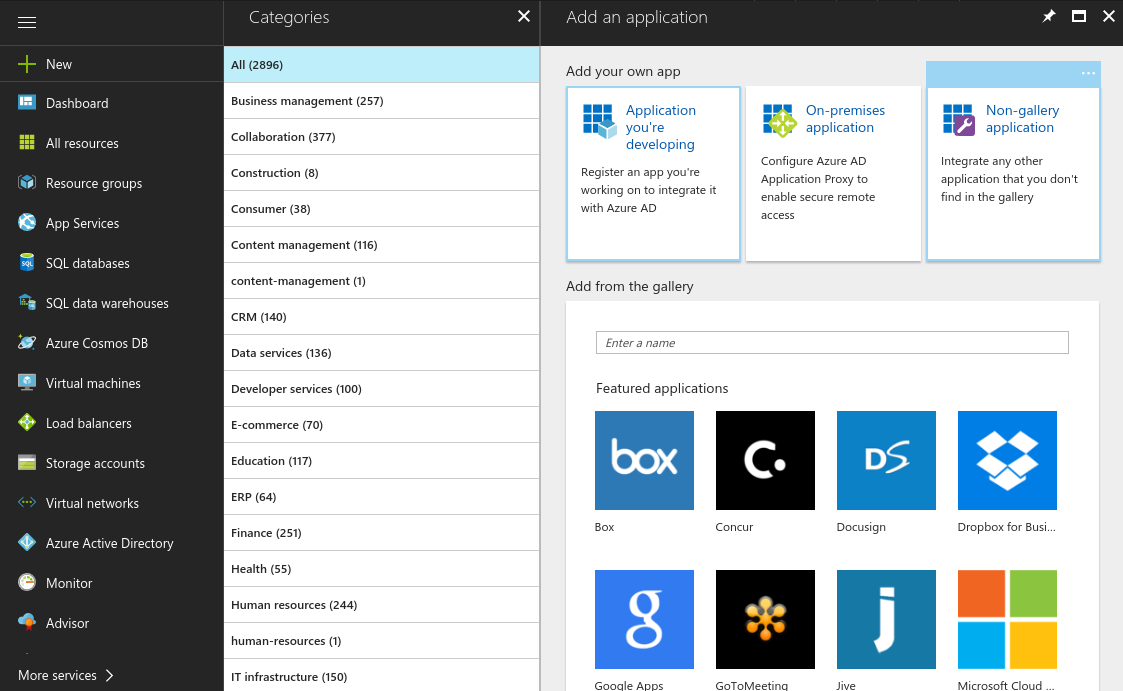

non-galleryApp — Add a new Non-gallery application

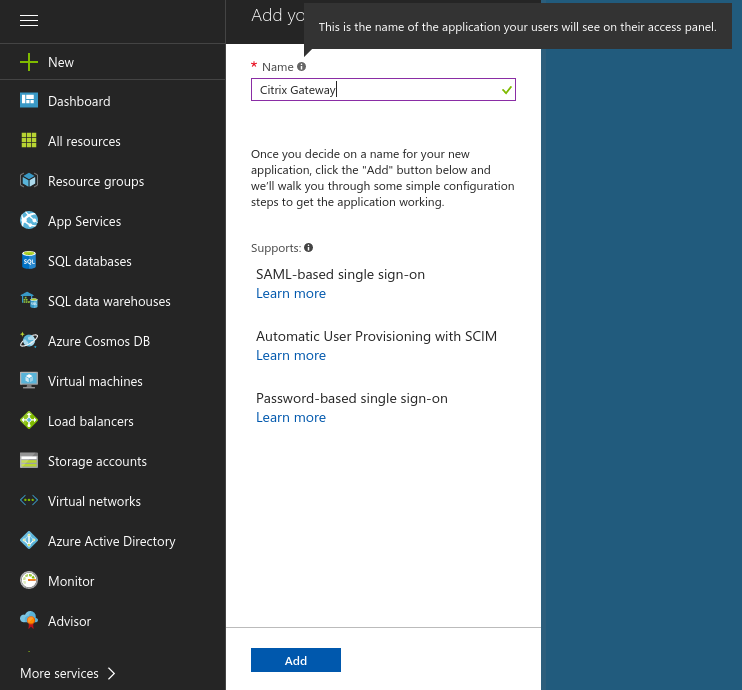

enterprise_app_name — Name your application - This is the name of the application your users will see on their access panel

After your enterprise application has successfully been created, you will see the Quick start panel.

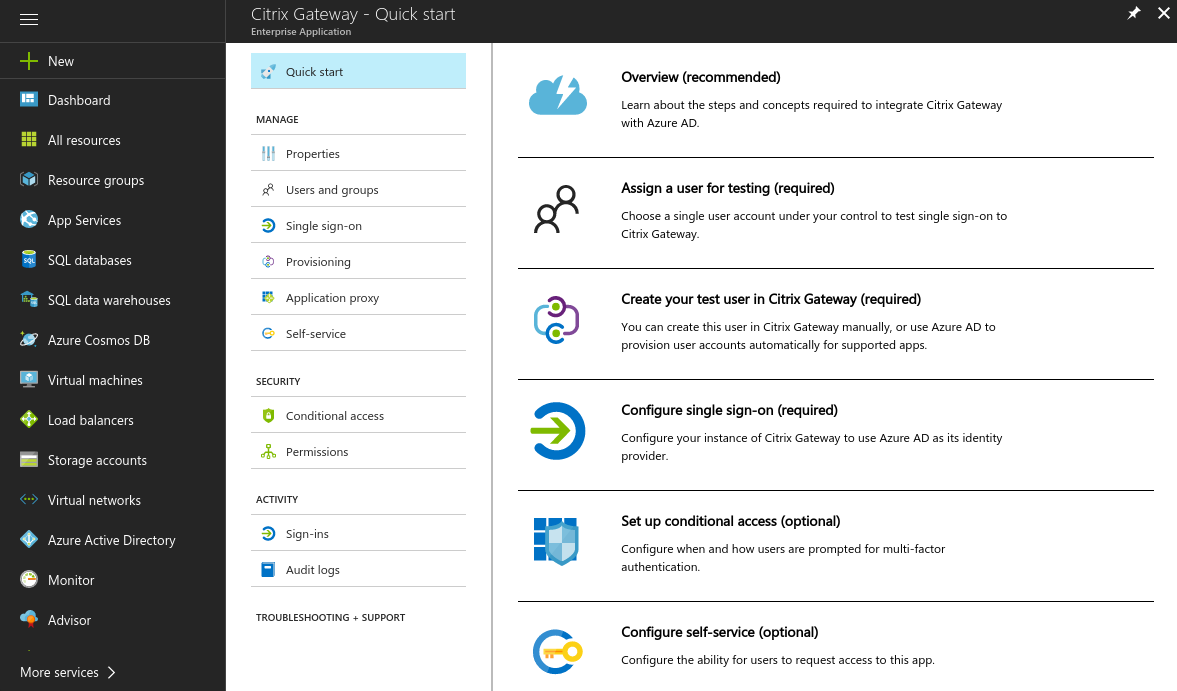

enterprise_app_quick_start — Quick start pane of the new enterprise application

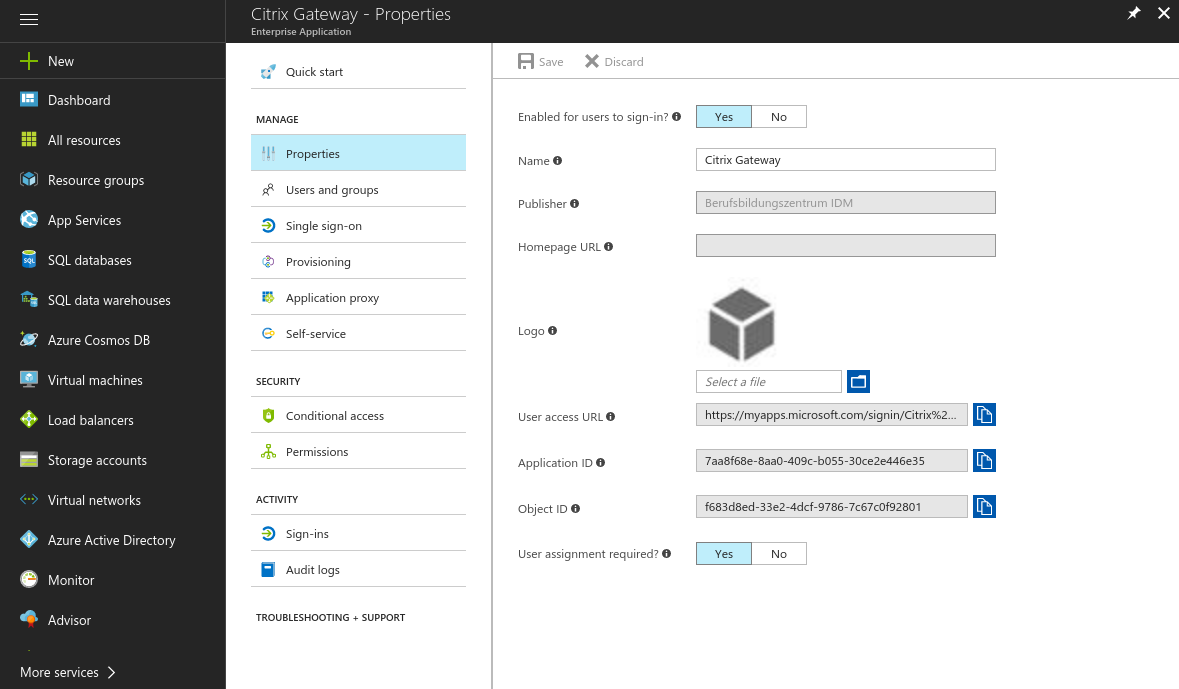

In the properties of the enterprise app you may change the name of the application and assign a custom logo. Here you also can globally enable or disable the application and choose if a user assignment is required for the application. If this option is set to yes, users must first be assigned to this application before being able to access it. If this option is set to no, then any users who navigate to the application will be granted access.

enterprise_app_properties — Enterprise application properties

Add users and groups you want to grant access to the application

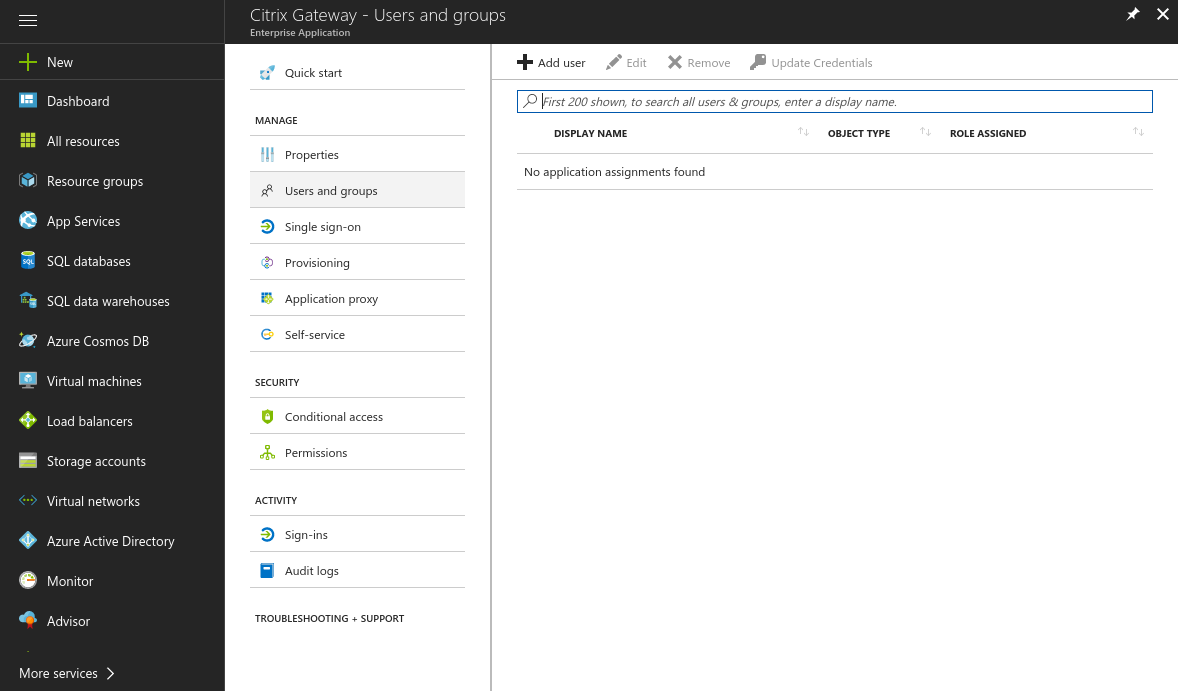

enterprise_app_users_groups — Assign users and groups to your application

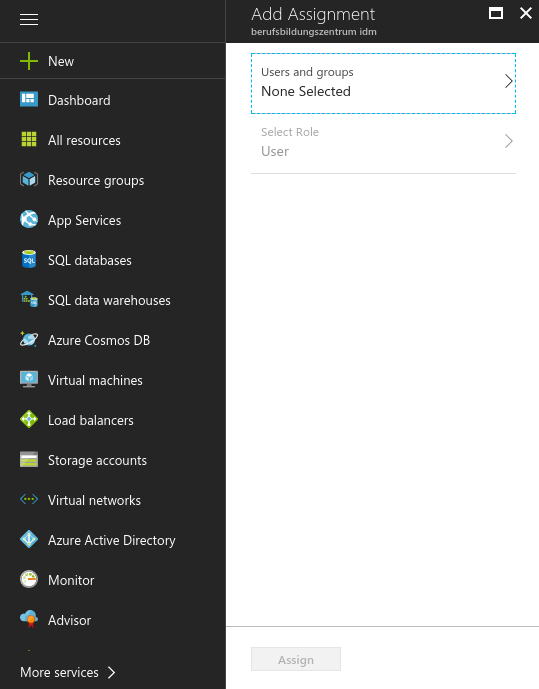

enterprise_app_assign_user — Assign users and groups

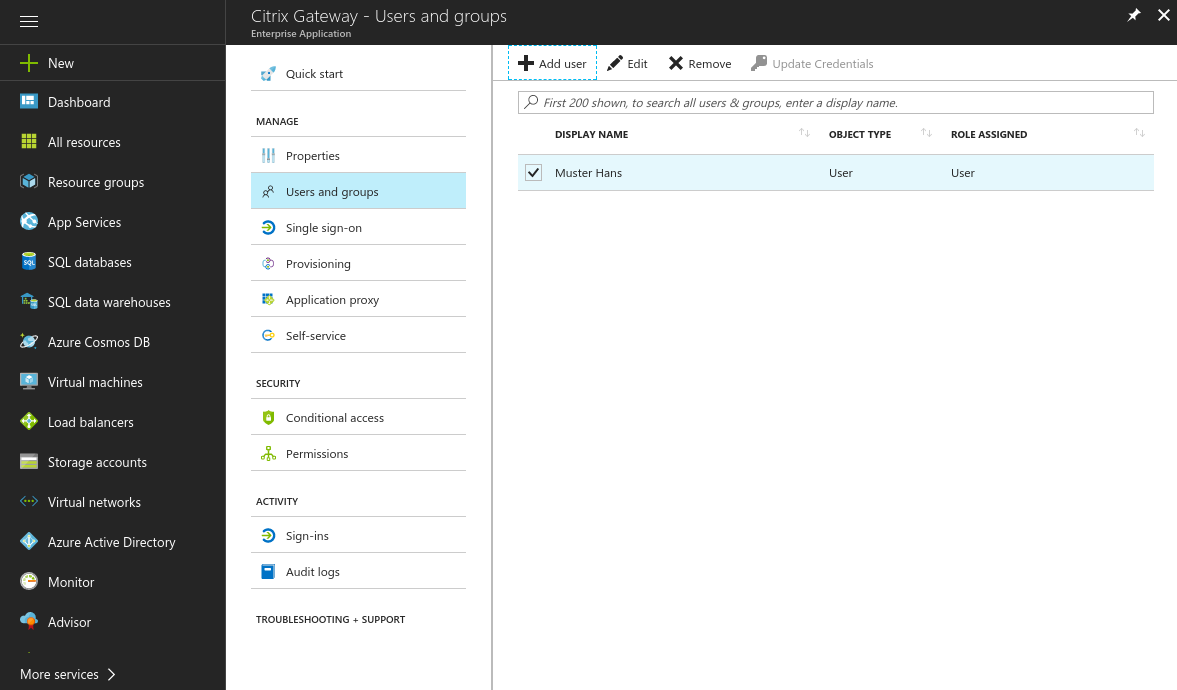

enterprise_app_user_assigned — Assigned user to the enterprise application

Move on to the Single sign-on settings and enable SAML-based sign-on

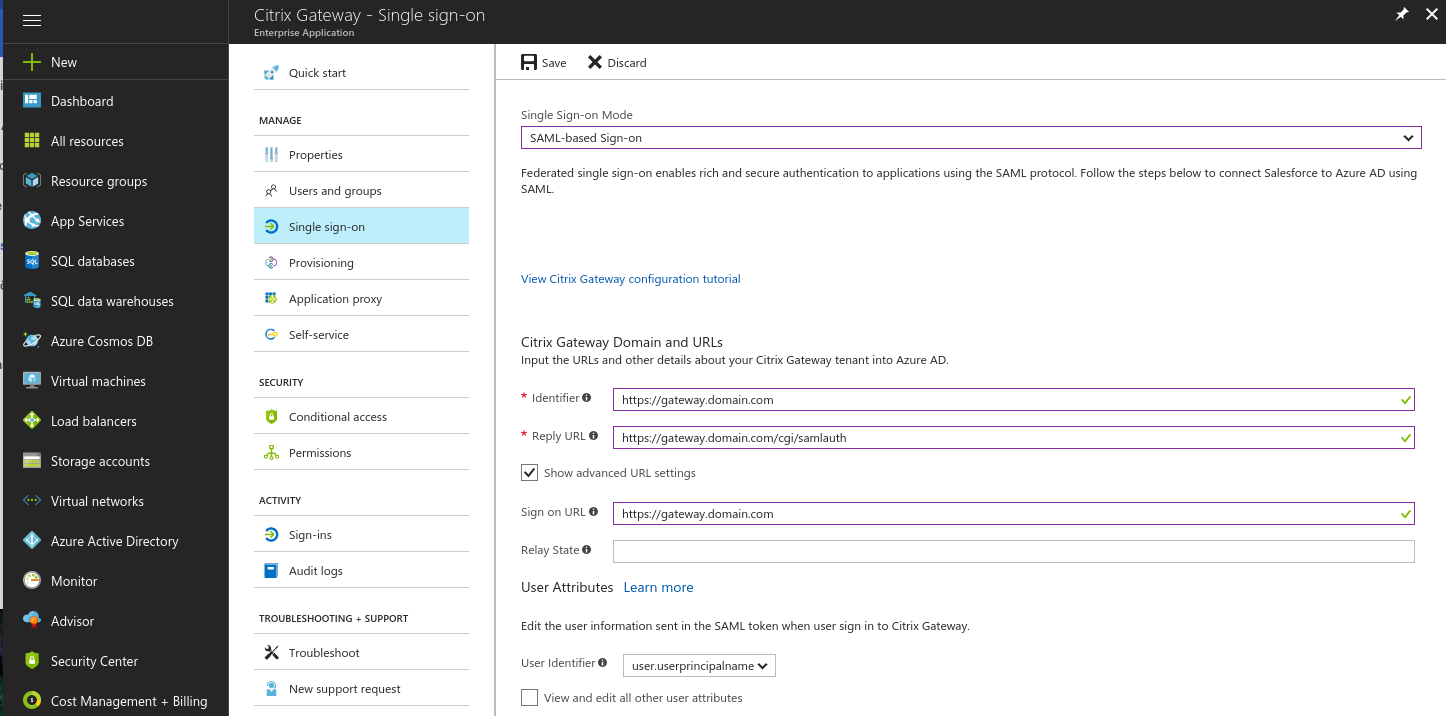

enterprise_app_sso_settings — Enable SAML-based Sign-on

Set the Identifier to the URL of your NetScaler gateway
Set the Reply URL to the URL of your NetScaler gateway and append /cgi/samlauth
Set the Sign on URL to your NetScaler gateway address
Select user.userprincipalname for the User Identifier

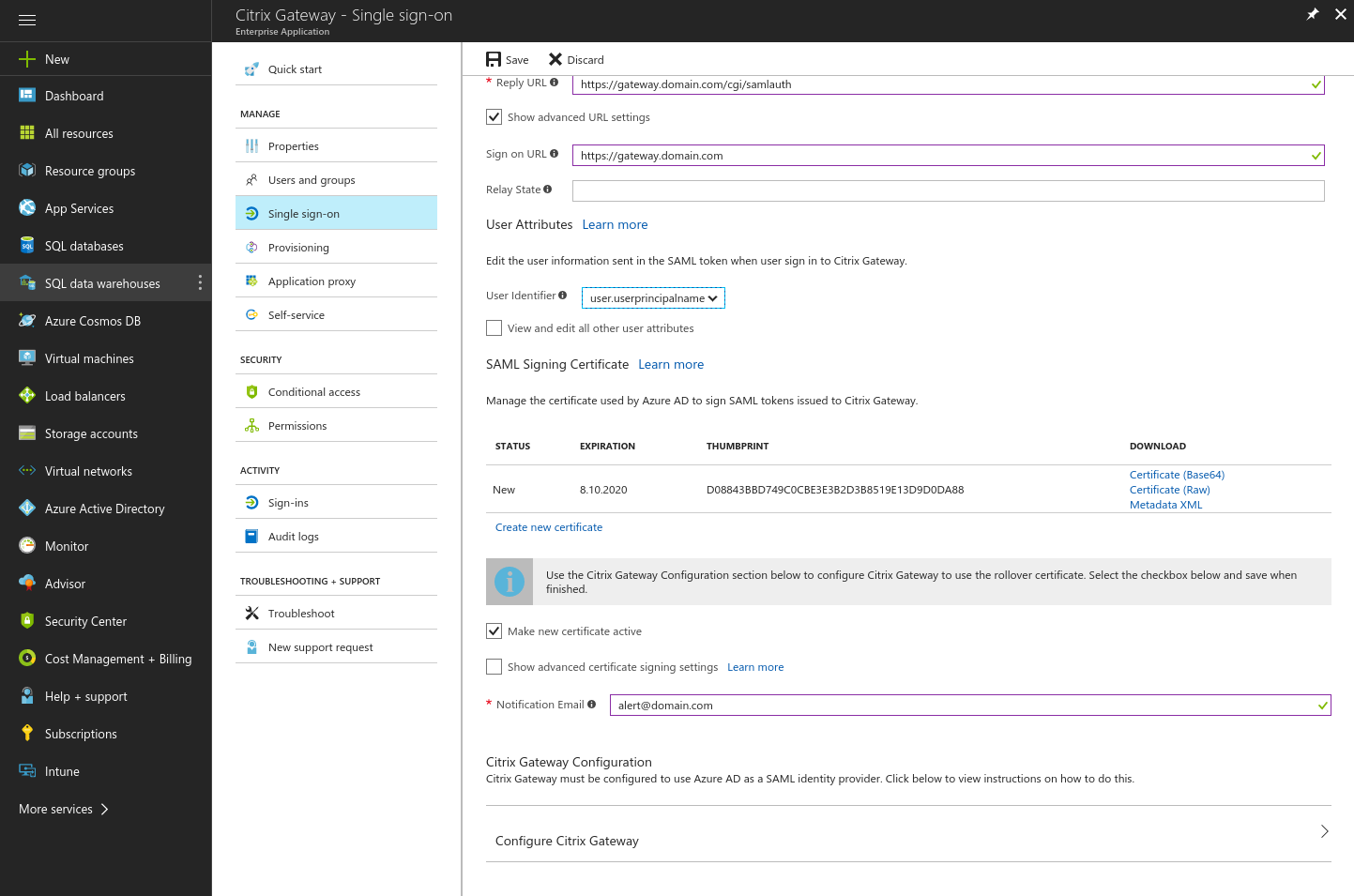

Make the new certificate active and set a notification email. When the active signing certificate approaches its expiration date, notifications are sent to this email address with instructions on how to update the certificate.

enterprise_app_sso_certificate_settings — Make new certificate active and set a notification email

Download the SAML signing certificate (Base64). We need this later on our NetScaler to set up the SAML authentication.

Citrix NetScaler Configuration

The configuration on the NetScaler side is quite straight forward. We just need to edit an existing virtual gateway to reflect our new SAML authentication against Azure AD.

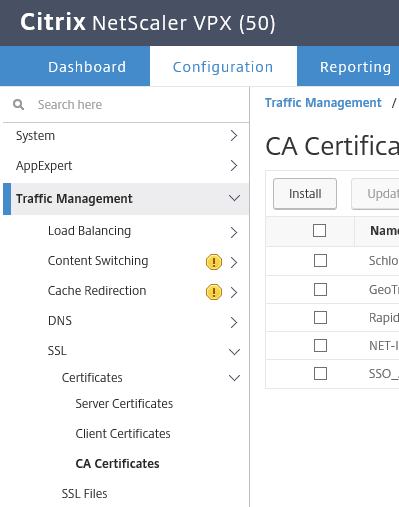

Upload and install the SAML signing certificate to your NetScaler's CA certificates. This can be done under Traffic Management -> SSL -> Certificates -> CA Certificates.

ns_upload_saml_cert — Upload SAML signing certificate

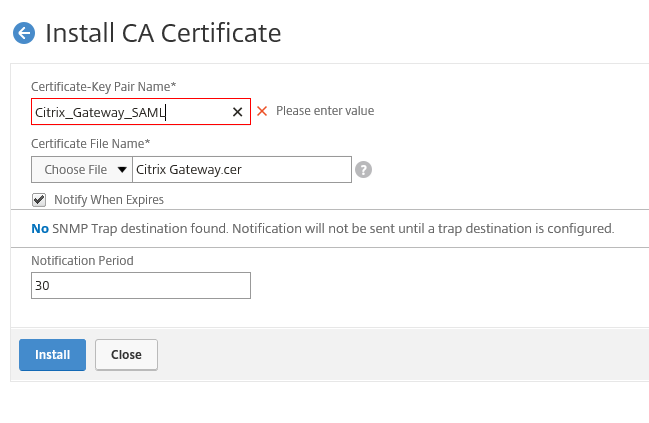

ns_install_saml_cert — Install SAML signing certificate

Add the SAML authentication server via Authentication -> Dashboard

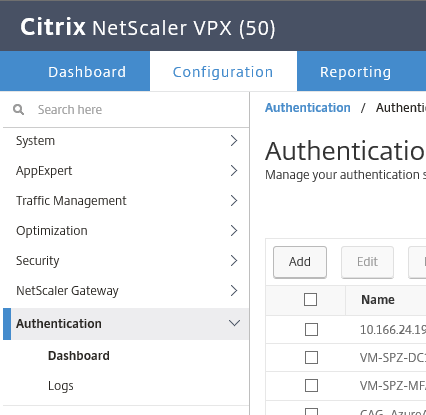

ns_add_authentication_server — Add SAML authentication server

Choose SAML for the server type and select the uploaded IDP certificate. For the signing certificate you may select your NetScaler server certificate. The Issuer Name has to match the Identifier you have set in your Azure enterprise app.

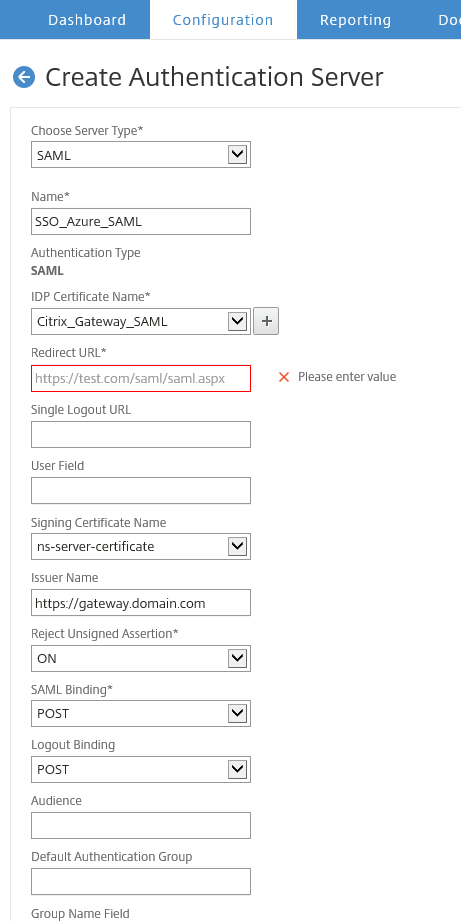

ns_create_authentication_server — Configure authentication server

Now you need to provide the Redirect URL and the Single Logout URL, which you can lookup in your enterprise app on Azure AD (Configure Citrix Gateway at the bottom of the page).

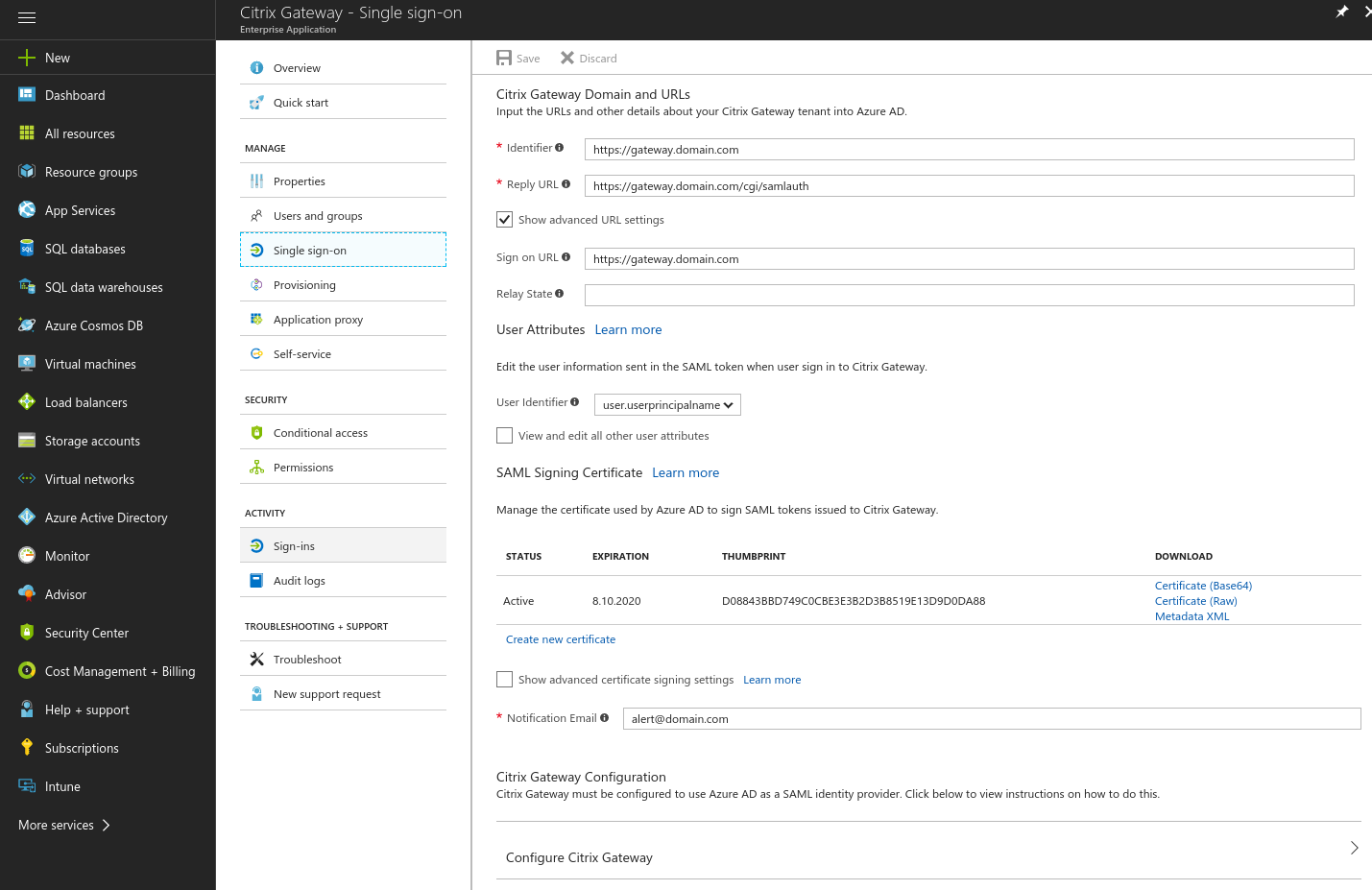

enterprise_app_config — Lookup redirect and single logout URLs

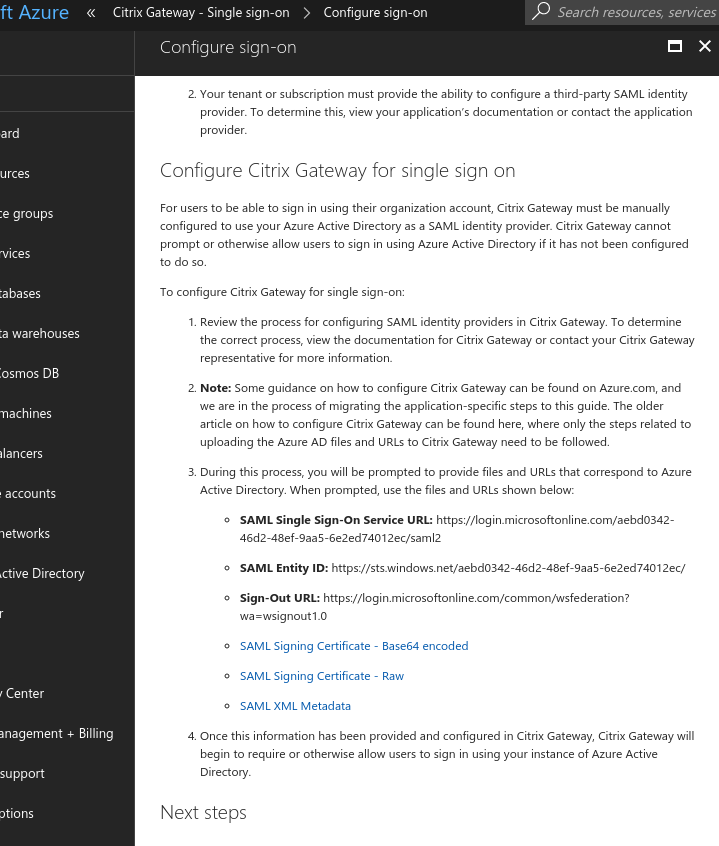

enterprise_app_urls — SAML Single Sign-On Service URL and Sign-Out URL

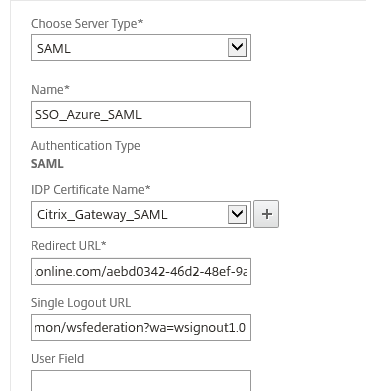

Take note of the SAML Single Sign-On Service URL (Redirect URL) and the Sign-Out URL (Single Logout URL) and put the values in your authentication server configuration of the NetScaler.

ns_config_authentication_urls — Set Redirect and Single Logout URLs

As a last step before hitting create, set the Signature Algorithm and Digest Method to SHA256.

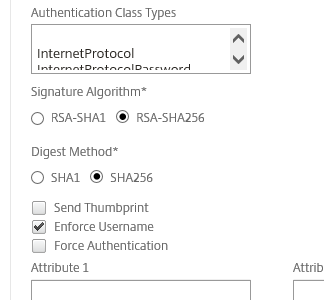

ns_config_authenticaton_algorithm — Set SHA256

Head over to your existing NetScaler Gateway Virtual Server configuration. Remove existing Active Directory authentication policies under Basic Authentication and replace them by creating a new SAML Policy for the Primary Authentication.

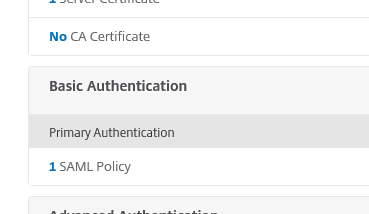

ns_config_gateway_authentication — Edit Basic Authentication to SAML

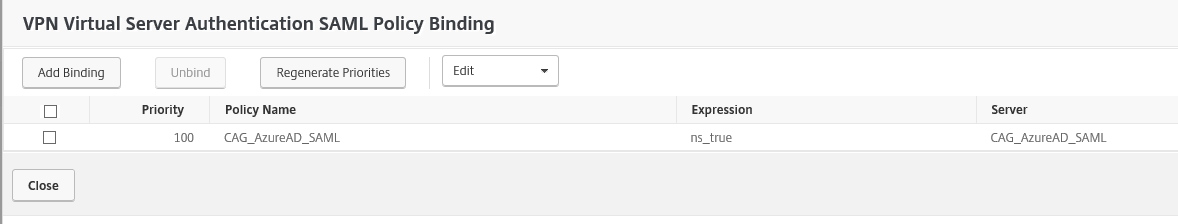

ns_config_gateway_authentication_policy — Bind SAML policy

Make sure to remove the Single Sign-on Domain from the Session Profile bound to the virtual server

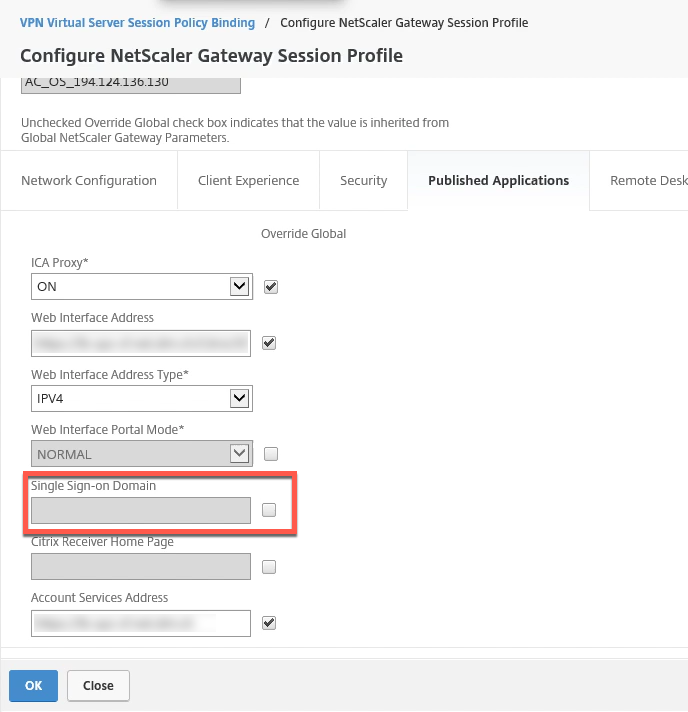

ns_config_gateway_session_sso — Remove Single Sign-on Domain from Session Profile

Installation and setup of Citrix Federated Authentication Service

The next step is to implement Citrix Federated Authentication Service in your Citrix XenDesktop / XenApp environment. Without Citrix FAS your NetScaler SAML authentication will work, but your users would have to re-authenticate when starting desktops and apps from StoreFront, which is definitively not what you want since we aim to build a true Singe Sign-On solution for our users.

There is a great blog posts from awesome Citrix CTP Carl Stalhood on how to set up Citrix Federated Authentication Service. You find his detailed setup guide under http://www.carlstalhood.com/citrix-federated-authentication-service-saml/. It's a very straight forward process and I encourage you to follow his guide for the setup.

Citrix StoreFront Configuration

In a last step we need to enable Federated Authentication on your StoreFront servers and fully delegate credential validation to NetScaler Gateway. Enable Federated Authentication Service integration on StoreFront by running the following PowerShell commands: Get-Module "Citrix.StoreFront.*" -ListAvailable | Import-Module$StoreVirtualPath = "/Citrix/Store"

replace with your corresponding Store name!

$store = Get-STFStoreService -VirtualPath $StoreVirtualPath$auth = Get-STFAuthenticationService -StoreService $storeSet-STFClaimsFactoryNames -AuthenticationService $auth -ClaimsFactoryName "FASClaimsFactory"Set-STFStoreLaunchOptions -StoreService $store -VdaLogonDataProvider "FASLogonDataProvider"

To delegate the credential validation to NetScaler Gateway, in the StoreFront management console go to Manage Authentication Methods of your Store, and select the settings of Pass-through from NetScaler Gateway, where you can enable Delegated Authentication.

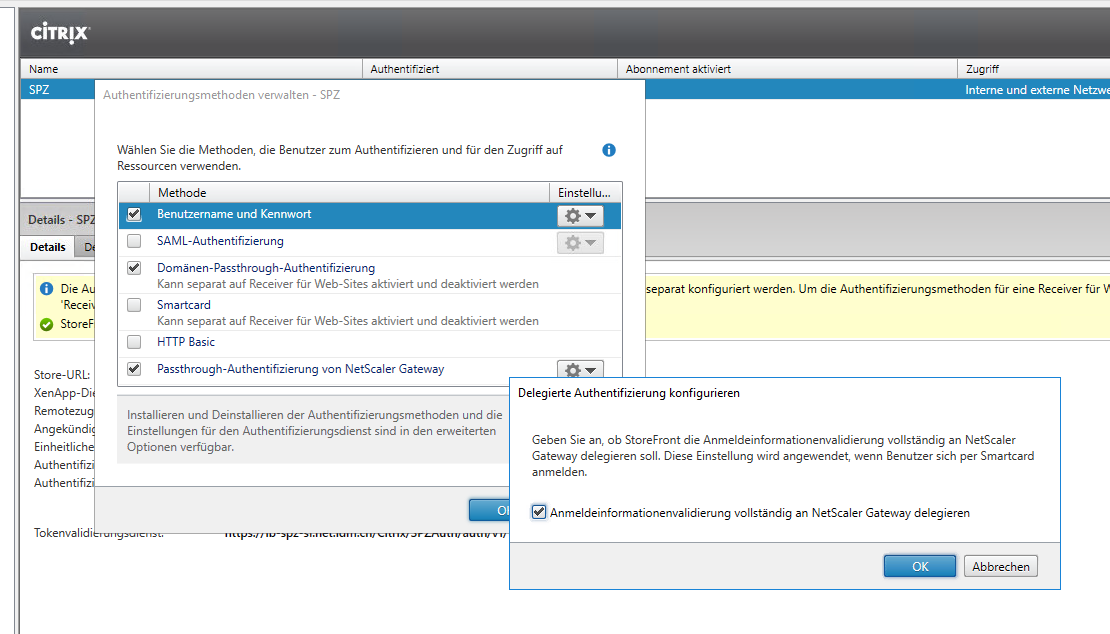

sf_config_delegated_authentication — Fully delegate credential validation to NetScaler Gateway

Enabling and configuring Azure MFA for your Citrix Gateway enterprise app

That's it, you are almost done! The very last step is to enable and configure multi-factor authentication for your newly created Azure enterprise app.

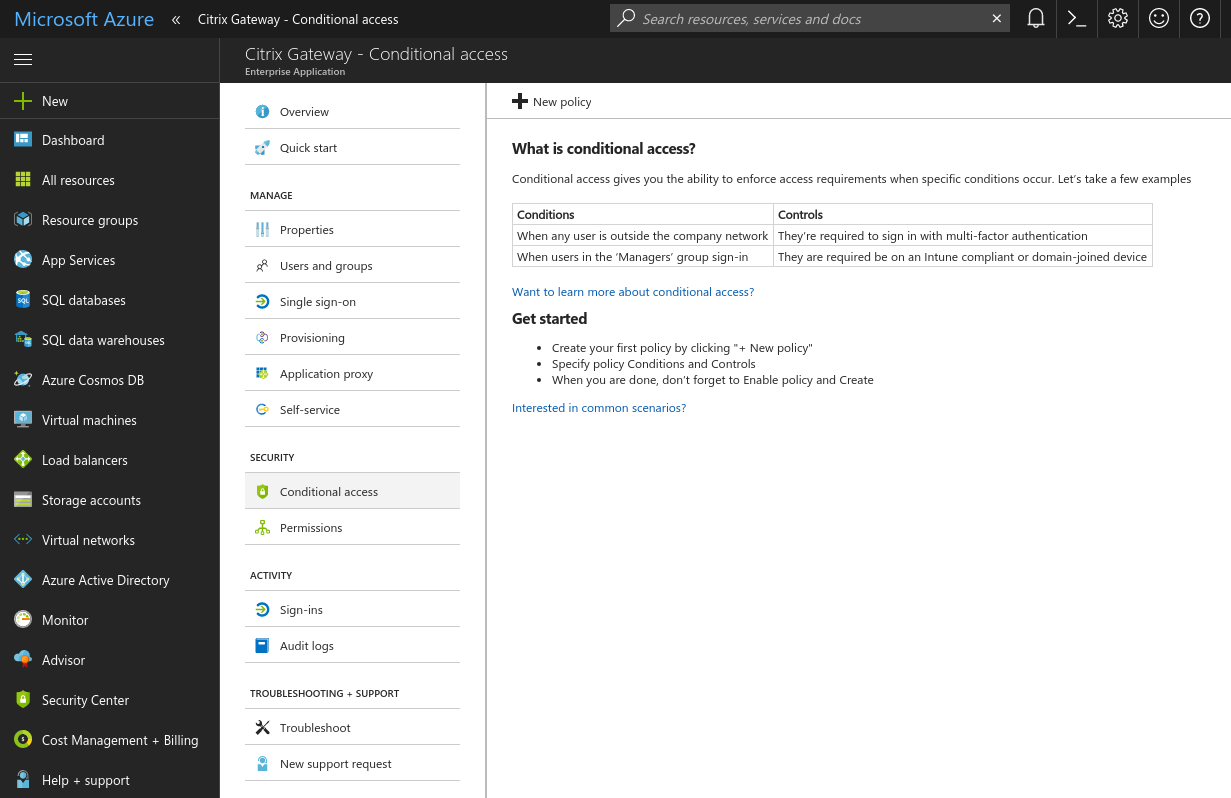

Create a new Conditional Access Policy
Create a new conditional access policy

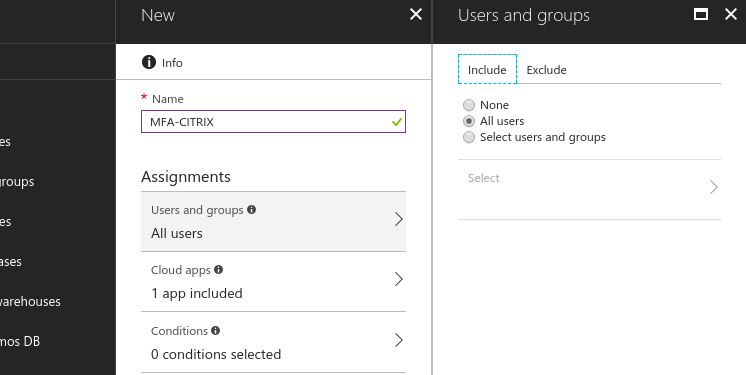

Specify the users and groups to be included and / or excluded from the policy
Users and groups in the directory that the policy applies to

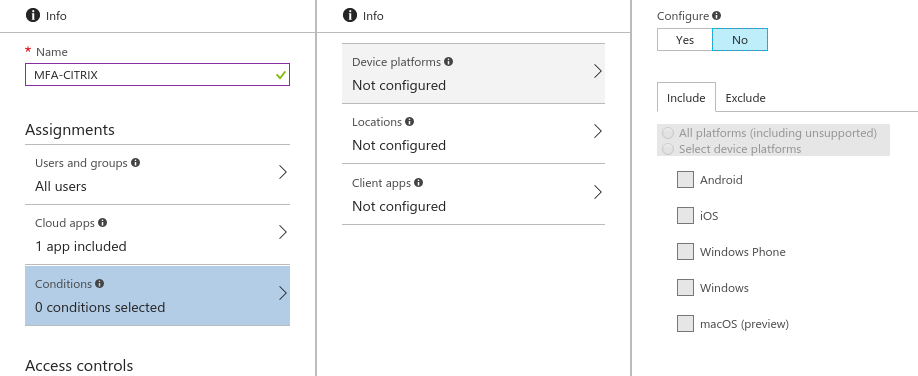

Set the conditions which define when the policy will apply. You can specify conditions based on
1. Device platforms (Android, iOS, Windows Phone, Windows, macOS)
  Platform the user is signing in from

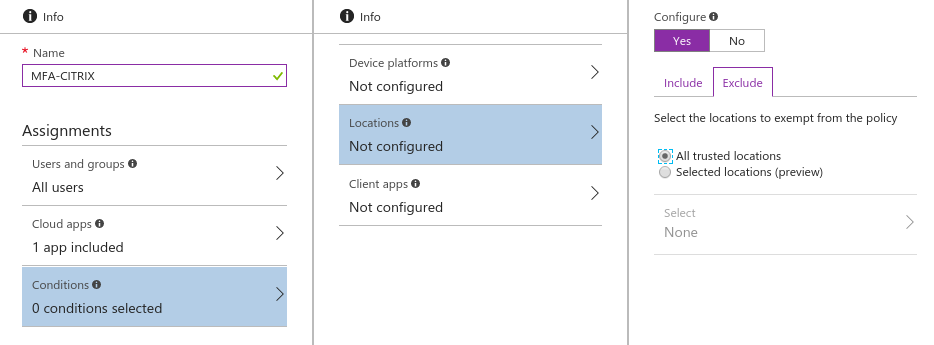

2. Location (determined using IP address range the user is signing in from)
  Location the user is signing in from

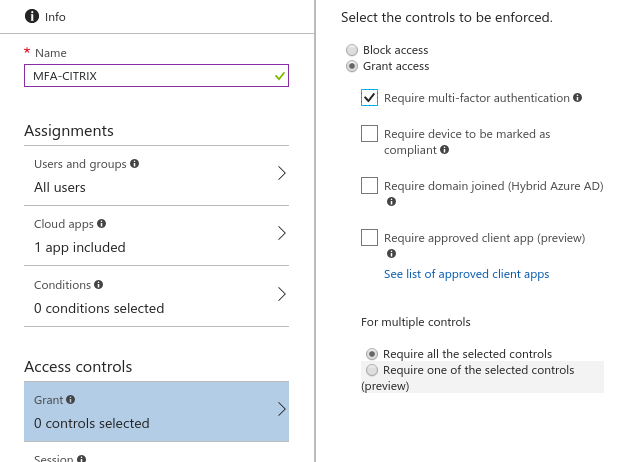

Set Access Controls to block access or enforce additional requirements which need to be satisfied to allow access. You can enforce the following additional requirements
Select the controls to be enforced
1. Require multi-factor authentication - User must complete additional security requirements like phone call, text, authentication app challenge
2. Require device to be marked as compliant - Device must be Intune compliant. If the device is non-compliant, the user will be prompted to bring the device under compliance
3. Require domain joined (Hybrid Azure AD) - Devices must be Hybrid Azure AD joined

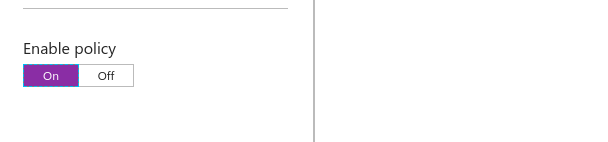

Enable the Conditional Access Policy
Enable the Conditional Access Policy

Finally all done and you have implemented a highly user friendly way to provide your end-users with a secure remote access to your company's Citrix XenDesktop / XenApp environment.

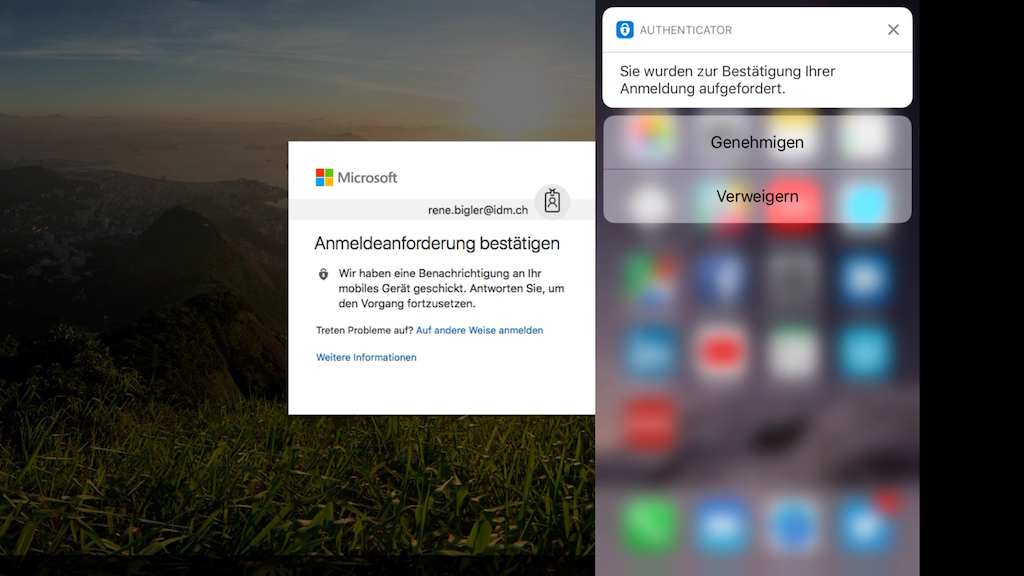

See it in action in the following video clip and enjoy the outcome of your hard work!
